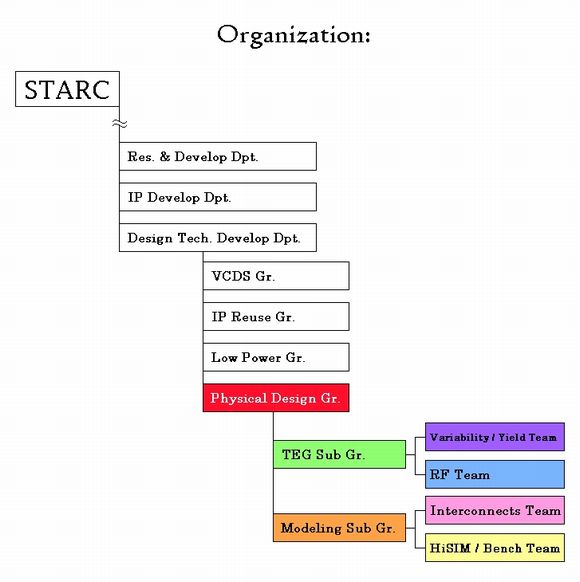

In the VDSM (Very Deep Sub-Micron) era, Physical Design of VLSIs becomes one of the major issues for successful SoC (System on a Chip) products. Time-to-Market, it is also the continuous challenge in Semiconductor Industry. Objective of STARC gPhysical Design Grouph is to develop new technology and methodology in VDSM physical design issues, such as SI (Signal Integrity) problems, optimized (compromised) variability design method and quick yield-ramping. Fact-finding on wafer is our approach, therefore, well-devised Test Structures (TEG: Test Element Group) for updated process (0.07-0.13um CMOS) are our big challenge against the VDSM physical design issues. gPhysical Design Grouph has three aggressive Working Task-Forces to achieve worldfs top level design technology development. Slides on Mission and Activities of PhD Gr.; 2002 EDS-Fair Panel (pdf 740KB) Special Projects (1) TEG Sub Gr. : TEG-WG leads top-level
research and development of design problems on Process Variation, Yield optimization,
Data-base-files interfacing between Process/Device and Circuit. Innovative TEG
and measurement are the major challenge to achieve the Mission. Timing-closure in
VDSM SoC design is the critical and biggest problem. Low Power circuit also be
must. Modeling-WG challenges new Circuit-level modeling/simulation on compact
MOS model and full LCR power net analysis. Many sophisticated EDA-tools and Models have been extensively proposed, which lead innovative improvement VDSM Physical Design. Benchmark-WG addresses reliable and quick benchmark methodology for these tools and models. Basic idea is special TEG to validate them on Silicon and accurate measurement technique. Open invitation on the TEG, in volunteer base, is continuous policy for annual STARC-TEG designed with updated technologies. |
Physical Design Group , Group Leader , Hiroo Masuda |
![]() |
